Shielding gasket

Introduction

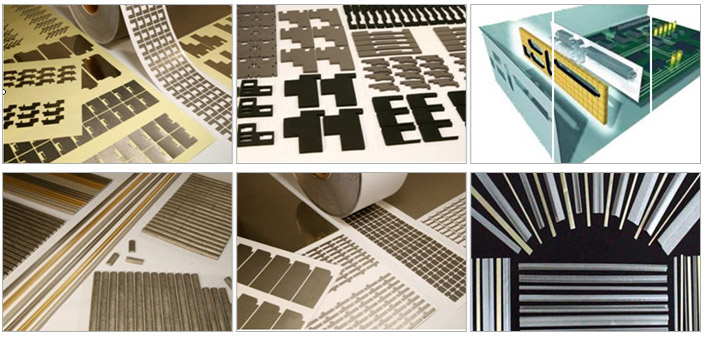

Nowadays, with the rapid development of mobile communication technologies, we are facing a lot of serious problems related to electromagnetic waves from IT products. To cope with these problems, it is necessary to use the EMI Shielding products. We have a wide range of EMI Shielding and Conductive Products, related to the computer, telecommunications, military equipment, general electronics, medical equipments and automotive industries. These include Fabric Gasket, Gold Gasket and Cushion Gasket. Our EMI Shielding Products has been awarded ISO 9001 and 14001 certification and has patents unique designed to perform good shielding effects. And they have meet UL requirements.

Applications

Shielding for Electronic Casings & Frames EMI Countermeasures for PC and etc.

Features

Excellent EMI Shielding Effectiveness  Good electric contact due to using of adhesive tape  Grounding effect owing to direct contact with conductive fabric in embossing type  Reasonable cost

Specifications

Elastomer

Content SPEC. Remarks Raw Material PU (polyurethane) Foam 　 Density (kg/m3) 32±3 45±3 Halogen-Free Tensile Strength (kgf/cm2 [psi]) ≥ 0.8 [11.4] ≥ 1.0 [14.2] 　 Elongation (%) ≥ 150 ≥ 100 　 Tear Strength (N/m) ≥ 0.4 ≥ 1.0 　 Compression Set (%) ≤ 20 ≤ 20 ASTM D395B

Pressure Sensitive Adhesive(PSA)

Type Thickness Contact Resistivity Service Temp. Adhesive Strength (gf/25mm) Remarks (mm) (Ω/□) (°C) [180 Peel-off, @ 300mm/min] Conductive 0.11 0.05 ≤ 105 ≥ 1000 ID-23N11 Non-conductive - - ≤ 105 ≥ 1500

Conductive Fabrics

P/N Structure of PET Thickness(mm) Surface Resistivity SE(dB) / Plating Metal (Ω/□) [30MHz~1GHz] IDF-NR Ripstop / Ni + Cu + Ni 0.1 ≤0.08 ≥60 IDF-NK Woven / Ni + Cu + Ni 0.1 ≤0.08 ≥60 IDF-GK Woven / Ni + Cu + Ni + Au 0.1 ≤0.07 ≥65 IDF-NW Non-Woven / Ni + Cu + Ni 0.08 ≤0.08 ≥60 IDF-NL Woven / Ni + Cu + Ni 0.08 ≤0.03 ≥60
