| SMT GASKET W series |
|
|
|

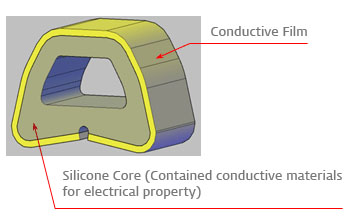

SMT Gasket is a conductive gasket using for circuit ground SMT to reduce the electrical/ electronic malfunction and its EMI noise.

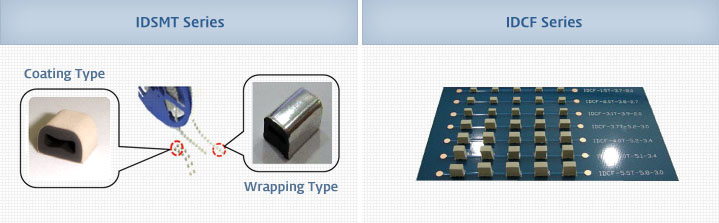

Existing EMI shielding gasket are produced in wrapping the foam with conductive fabric but it does not have high temperture resistance.
SMT gasket have the excellent electrical conducivity, high heat resistance and SMT mountable characteristics for automatic soldering procedure.
This product is patented for unquie technology.
|
|
|
|
Execllent grounding characteristics from a wide area of grounding
Excellent electrical conductivity
The stablization of components due to mounting levelly
Excellent reliability (repeated compression, brine-atomizing test pass)
Precise reel packing for the accurate work
Superior thermo-stable characteristics
High adhesion after SMT mounting
EMI shielding
Impedance matching fouction PCB or FPBC
Excellent thermal transfer
Excellent ESD (electrostatic discharge)
Cushion and anti-shock after SMT mounting
EMI noise attenuation its power loss property
|
 |
|
|
| Specifications |
| ITEM |
Test Method |
Properties |
| Material Description |
Base Material |
- |
Silicone rubber/PI Film |
| Filler (Core)> |
- |
Carbon |
| Color |
Visual |
Silver |
| Heat Resistance (°C) |
Internal Test Method |
400℃ |
| Service Temp. (°C) |
Internal Test Method |
-40 ~ + 280℃ |
| Electric Resistance( Ω ) |
Origin |
HIOKI 3540 mΩ HITESTER |
Max. 0.1 Ω |
| Thermo-hygrostat |
Max. 0.1 Ω |
| Brine Atomizing |
Max. 0.1 Ω |
| Thermal Shock |
Max. 0.1 Ω |
| Adhesion Strength (gf)> |
UTM |
Min. 1500gf |
| Compression-Deflection Rate (%) |
20% Compression |
>Min. 95% |
| 85°C/85%RH, 200Hr |
| Hardness |
KS M 6519 (Shore A) |
65 ± 8 |
| Flammability |
UL 94 |
UL 94-V1 |
| RoHS & Halogen Free |
Pb, Cd, Hg, Cr+6, PBBs, PBDEs, Br, Cl |
N.D. |
|
