Absorber

Introduction

The compatibility of electronic devices with various electromagnetic environment has become an important issue in recent years. We has developed the IDA-series Absorbers which are light-weight and flexibility. Much absorption loss provides you with many applications in EMI/EMC field such as mobile phones, LCD cables, military applications and the SAR issues.

Application

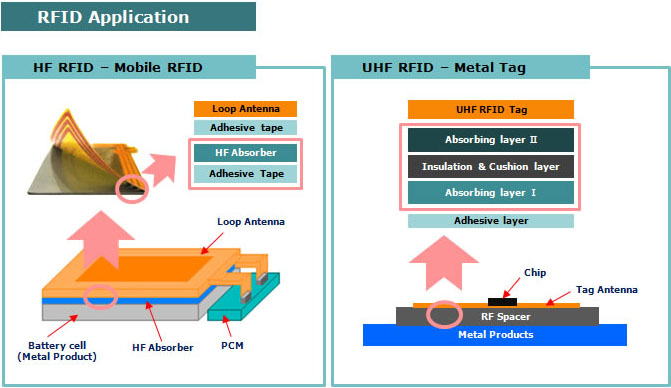

Suppressing radiated noise and its internal interference of electronic devices. Intra-system application to suppress noise in quasi-microwave range. Improving the distance of electromagnetic signal recognition and preventing interference between loop antennas and adjacent metal objects. Communication devices, office electronics, computers, home appliances, and devices mounted on automobiles, radar’s and TV ghost measures, ETC (the electronic toll collection system), wireless equipment, military, etc.

Features

Excellent electromagnetic absorption performance in the microwave ranges. Thin, lightweight, flexible; reliable to apply in wide applications. High permeability which can be realized an excellent performance in noise suppression. The applicable frequency range; quasi-microwave band, C(4~8GHz), X(8~12GHz), Ka, K band. High electrical resistance. Various shapes and sizes are available on requests.

Effect

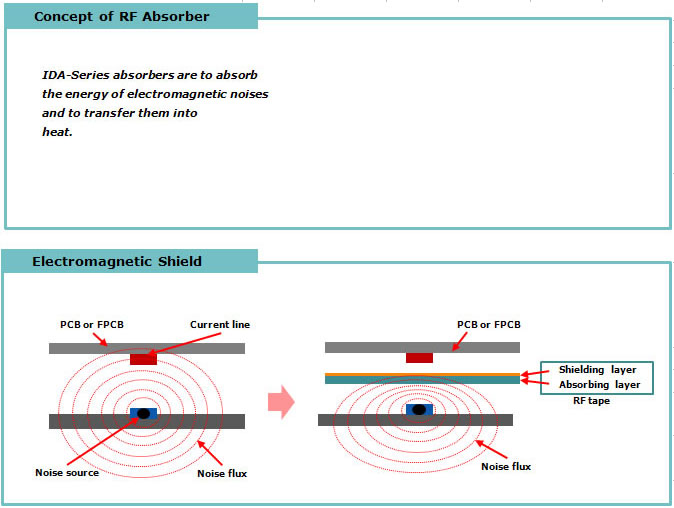

Concept of RF Absorber IAD-Series absorbers are to absorb the energy of electromangnetic noises and to transfer them into heat

Product

EMI absorber -- IDA series NFC, RF type absorber frequrncy 13.56 MHz

Specifications

ITEM EMI Absorber NFC/RFID Content SDS L P N N VHFR VHF SHF FM FM T N2 FML R RL RP (V0) (V0) Target frequency 10MHz ~ 4GHz 13.56MHz Material Soft magnetic metal powder + Rubber Complex sheet Thickness 0.2~ 0.05~ 0.1~ 0.1~ 0.1~ 0.1~ 0.1~1.0 0.05, 0.05~ 0.15~ 0.1~1.0 (mm) 1 1 1 0.5 1 0.5 0.08 0.5 0.5 Standard size Roll (210 X M), 210mmX300mm, Roll(210 X M) 250mm Roll(210mm*M) 300mm*420mm, Custom size Custom size 300mmX 420mm, X 　 Custom size 250mm Permeability 20 20 30 30 20 50 50 75 100 75 50 110 150 30 43 55 Environment RoHS RoHS/Halogen Free RoHS/Halogen Free Service temp.(°C) -25 ~ 85 -25 ~ 90 -25 ~ 150 -25 ~ 80 -25~90 -25 ~ 80 -25~120
